PTE 3 Axle Semi Transporter
Overall length: 14700 (max)
Main deck length: 9000
Forward length: 9200 (max)
Deck height (Unladen): 900
Rear overhang: 4300 (max)
Beavertail: 1100
Beavertail Angle: 13 degrees
Tare approx: 8000Kg
Max Gross laden weight: 32000Kg
Axles: ROR Meritor ACMX 17.5″ drum brake
Suspension: Hutch 3 leaf underslug or Weweller Ultralite Air
Wheels: 12 x 6.00″x17.5″ steel painted silver or Alloy
Tyres: 12 x 215/75 R 17.5 tubeless
Toolbox: Steel under left side of deck
King pin: 2″ drop out type
Brakes: Knorr Bremse ABS with Ratio for spring suspension, EBS for Air suspension
Load Anchors: 12 t rated on low deck, 8 t rated on top deck
Paint: One colour 2 pot
Lights: LED Side and tail lights
On Road: COF, Rego. RUC 1000km
Deck: 50mm H3 R/S Pine
Ramps: 2400 x 900 Hydraulic, operated at rear

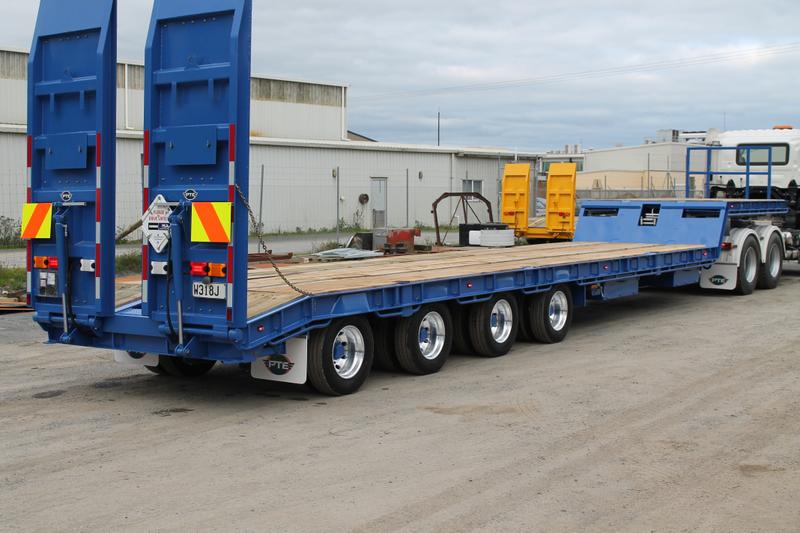

PTE 4 Axle Semi Transporter
Overall length: 14700 (max)
Main deck length: 9000
Forward length: 9200 (max)
Deck height (Unladen): 900
Rear overhang: 4300 (max)
Beavertail: 900
Beavertail Angle: 13 degrees
Tare approx.: 10000 Kg
Max Gross laden weight: 40000 Kg
Axles: ROR Meritor ACMX 17.5″ drum brake, 3 x fixed, 1 x steer OR 4 x fixed
Suspension: Weweller Ultralite Air
Wheels: 16 x 6.00″x 17.5″ steel painted silver or Alloy
Tyres: 12 x 215/75 R 17.5 tubeless
Toolbox: Steel under left side of deck
King pin: 2″ drop out type
Brakes: Knorr Bremse EBS for Air suspension
Load Anchors: 12 t rated on low deck, 8 t rated on top deck
Paint: One colour 2 pot
Lights: LED Side and tail lights
On Road: COF, Rego. RUC 1000km
Deck: 50mm H3 R/S Pine
Ramps: 2400 x 900 Hydraulic, operated at rear
