3 axle simple trailer
Overall length | 9000
Main deck length | 6000
Forward length | 6000
Deck height (Unladen) | 860
Rear overhang | 3000
Beavertail | 1100
Tare approx. | 4500 Kg (with ramps)
GVM | 20500 Kg (with 50mm eye)
23000 Kg (with pintle eye)
Axles: 3 x ROR Meritor 17.5” 10 stud lowloader.
Suspension: Hutch 3 leaf heavy duty underslung spring.
Wheels: 12 of 6.00” x 17.5” steel, painted silver
Tyres: 12 of 215/75R17.5 tubeless low profile.
Toolbox: In drawbar.
Tow eye: 50mm flange mount 2500kg vertical OR Pintle eye at 5000kg
Brakes: ABS with ratio valve
Load Anchors: Rated at 8000kg each
Paint: Blasted, primed, painted in one colour, 2 pot
Lights: LED rear and markers
On Road: Registration, C.O.F, Hubodometer, 1000km RUC
Deck: 50 m/m pine, coach bolted
Ramps: Spring OR hydraulic operated at the rear

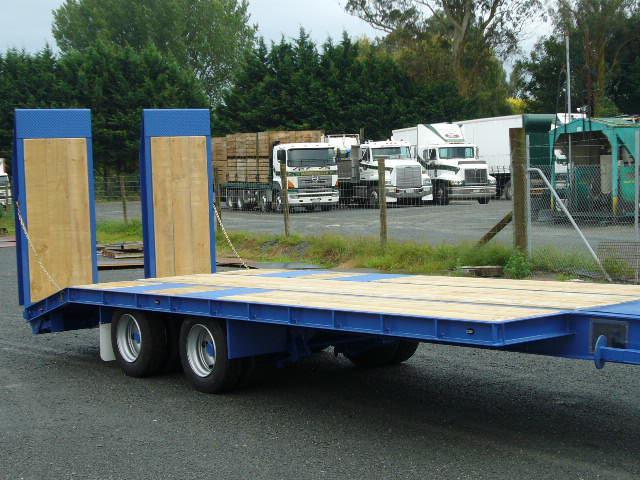

2 axle simple trailer
Overall length | 9000
Main deck length | 6000
Forward length | 6000
Deck height (Unladen) | 860
Rear overhang | 3000
Beavertail | 1100
Tare approx. | 4500 Kg.(with ramps)
GVM | 17000 Kg with 50mm eye
19500 Kg with pintle eye
Axles: 2 x ROR Meritor 17.5” 10 stud lowloader.
Suspension: Hutch 3 leaf heavy duty underslung spring.
Wheels: 8 of 6.00” x 17.5” steel, painted silver
Tyres: 8 of 215/75R17.5 tubeless low profile.
Toolbox: In drawbar.
Tow eye: 50mm flange mount 2500kg vertical or Pintle eye 5000kg
Brakes: ABS with ratio valve
Load Anchors: Rated at 8000kg each
Paint: Blasted, primed, painted in one colour, 2 pot
Lights: LED rear and markers
On Road: Registration, C.O.F, Hubodometer, 1000km RUC
Deck: 50 m/m pine, coach bolted
Ramps: Spring OR hydraulic operated at the rear
